This 8.4 inch capacitive touch screen with SA glass is designed for high-performance industrial applications. Featuring a robust SA (Strengthened Anti-glare) cover glass and 10-point multi-touch support, this 8.4 inch touch panel delivers exceptional optical clarity, scratch resistance, and reliability in outdoor and rugged environments. Ideal for HMI systems, self-service kiosks, medical devices, and industrial control displays.
Whether you're an OEM, integrator, or system developer, this industrial capacitive touch screen ensures long-term performance in demanding B2B scenarios.
Key Features
Glass type: SA (Strengthened Anti-glare) cover glass
Glass thickness: 1.1 mm
Transparency: ≥86%
Hardness: ≥7H surface hardness
Touch points: 10-point multi-touch
Operating temperature: -20℃ ~ +70℃
Storage temperature: -30℃ ~ +80℃
Interface options: I2C, USB, or RS232
Customization: Cover glass printing, size, shape, logo available
IC driver: ILI2511
Technical Specifications
| Item | Specification |
|---|---|
| Model | CDZ084GG379 |
| Size | 8.4 Inch |
| Outline Dimension |
|
| Viewing Area | 172.4 × 130.5 mm |
| Structure | G+G |
| IC | ILI2511 |
| Interface | USB / I2C / RS232 (customizable) |
| Touch Points | 10 Points |
| Glass Hardness | ≥7H |
| Anti-bacterial Coating | Yes |

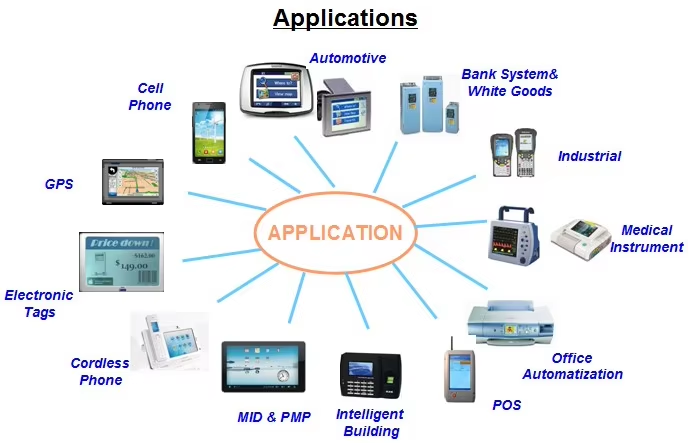

Applications
Industrial HMI and control systems
Outdoor kiosks and vending terminals
Medical devices and diagnostic equipment
Marine and transportation dashboards
Smart building automation panels
Self-service machines
Why choose us as your medical touch screen supplier?
- Over 10 years' experience in custom capacitive touch panel manufacturing
- Compliant with ISO 13485, ISO 9001, and ISO 22196 antibacterial standards
- Full support for bulk capacitive touchscreen orders with flexible lead times
- Trusted by global B2B clients in hospital display and industrial sectors.
