Custom Capacitive Touch Screen Manufacturer – OEM Solutions for Industrial and Medical Equipment
Our custom capacitive touch screens are tailored for high-end applications across industrial control systems, medical diagnostics, kiosks, and embedded devices. Whether you need a projected capacitive (PCAP) screen with a custom cover lens or a multi-interface design, we provide end-to-end OEM support for your projects.
Custom designed projected capacitive (PCAP) touch screens deliver pinpoint accuracy with multi-touch functionality. Used in a variety of industries, ranging from medical and industrial to consumer applications and military, WIWO's PCAP touch screens are offered at different pricing points in order to best meet a wide range of budgets.
Although capacitive touch screens have been around since the 1970s, the recent explosion in the popularity of smart phones has brought projected capacitive touch technology to the forefront of touch screen technology. Whether your project requires single touch or multi-touch with gesture capabilities, WIWO's customized capacitive touch screen technology is sure to deliver an interactive solution for your unique touch screen needs.
|
13.3 Inch Projected Capacitive Touch Panel |
|
| Model Number | CST133GG0306 |
| Type | PCAP |
| Structure | Glass+Glass |
| Cover Glass Dimension | 325.8±0.1*204.8±0.1*1.1±0.05MM |
| Sensor Size | 307.32±0.2*180.5±0.2*0.7±0.05MM |
| Cover Lens VA | 293.02±0.2*164.17±0.2MM |
| ITO Glass | 0.7MM |
| Cover Glass | 1.1MM |
| Total Thickness | 2.0±0.1MM |
| Surface Hardness | ≥6H |
| Transparency | ≥85% |
| Operating Temperature | –20℃~70℃ ≤90%RH |
| Storage Temperature | –30℃~80℃ ≤90%RH |
| IC | GT9110 RX30*TX42 |
| Interface of CTP | IIC |
| Touch Points | 5-10Points |
| Touch Accuracy | ±1MM |
| Linearity | ±1MM |
Custom Capacitive Touch Screen Features
- Available Sizes: 3.5 inch to 32 inch (customized on demand)
- Touch Type: Projected Capacitive (10-point multi-touch)
- Cover Lens: Custom shapes, logos, silk-printing available
- Interface Options: USB, I2C, RS232 (configurable)
- Structure: G+G, G+F+F supported
- Transmittance: >85%, anti-glare and anti-fingerprint coating optional
- Surface Hardness: 6H~7H tempered glass
- Operating Temperature: -20°C to 70°C
Applications of Custom PCAP Touch Screens
Our custom capacitive touch screen solutions are widely used in:
- Medical monitoring systems, ventilators, and diagnostic instruments
- Industrial human-machine interfaces (HMI) and control panels
- Banking and retail kiosks with interactive displays
- Automated vending machines and ticketing systems
- Transportation and marine navigation terminals

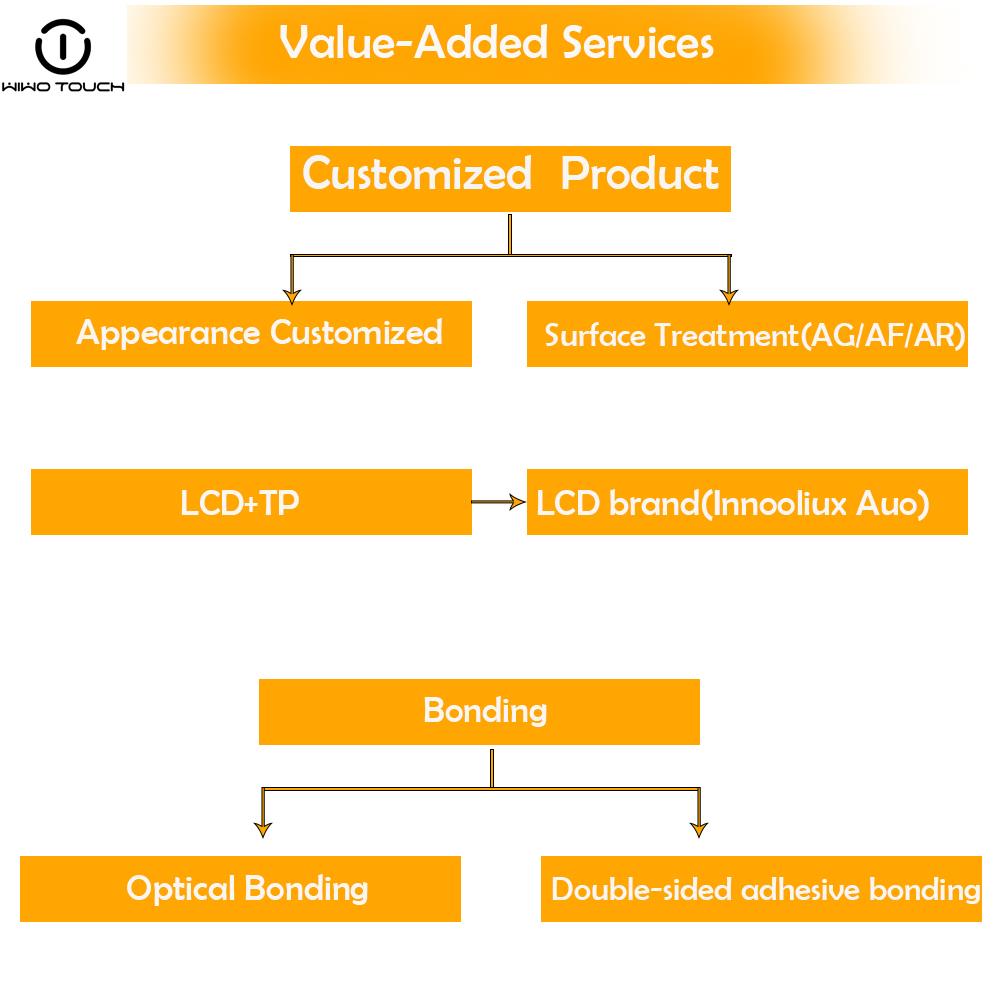

OEM/ODM Customization Capabilities
As a professional custom capacitive touch screen manufacturer in China, we offer flexible engineering services tailored to your project:
- Full-size customization from mechanical drawing to mold opening
- Custom cover glass with thickness, color, logo, and silk-print options
- Interface design tailored to your embedded board or motherboard
- Touch driver adjustment for different OS (Windows, Android, Linux)
- Bonding with LCD displays (air bonding and optical bonding)
Why Choose Us for Custom Capacitive Touch Solutions
- 10+ years of experience in OEM touch screen design and production
- ISO9001, ISO14001, ISO13485 certified factory
- Expertise in bulk supply for industrial and medical device manufacturers
- Quick prototyping: samples in 7–10 working days
- Engineering team support for your custom hardware integration
- Strong export experience with global B2B partners
Our Booth
FAQ
- 1. Can I get a fully customized capacitive touch panel for my device?
- Yes, we support full customization including cover glass, shape, thickness, and touch interface.
- 2. What is the typical lead time for custom projects?
- Prototype samples take 7–10 days. Mass production lead time is 3–4 weeks depending on volume.
- 3. Do you provide technical support for integration?
- Yes, we provide touch driver tuning, connector matching, and integration consultation.
- 4. Do you serve small-batch OEM orders?
- Yes. We accept low MOQ for custom touch screen samples and pilot runs.
