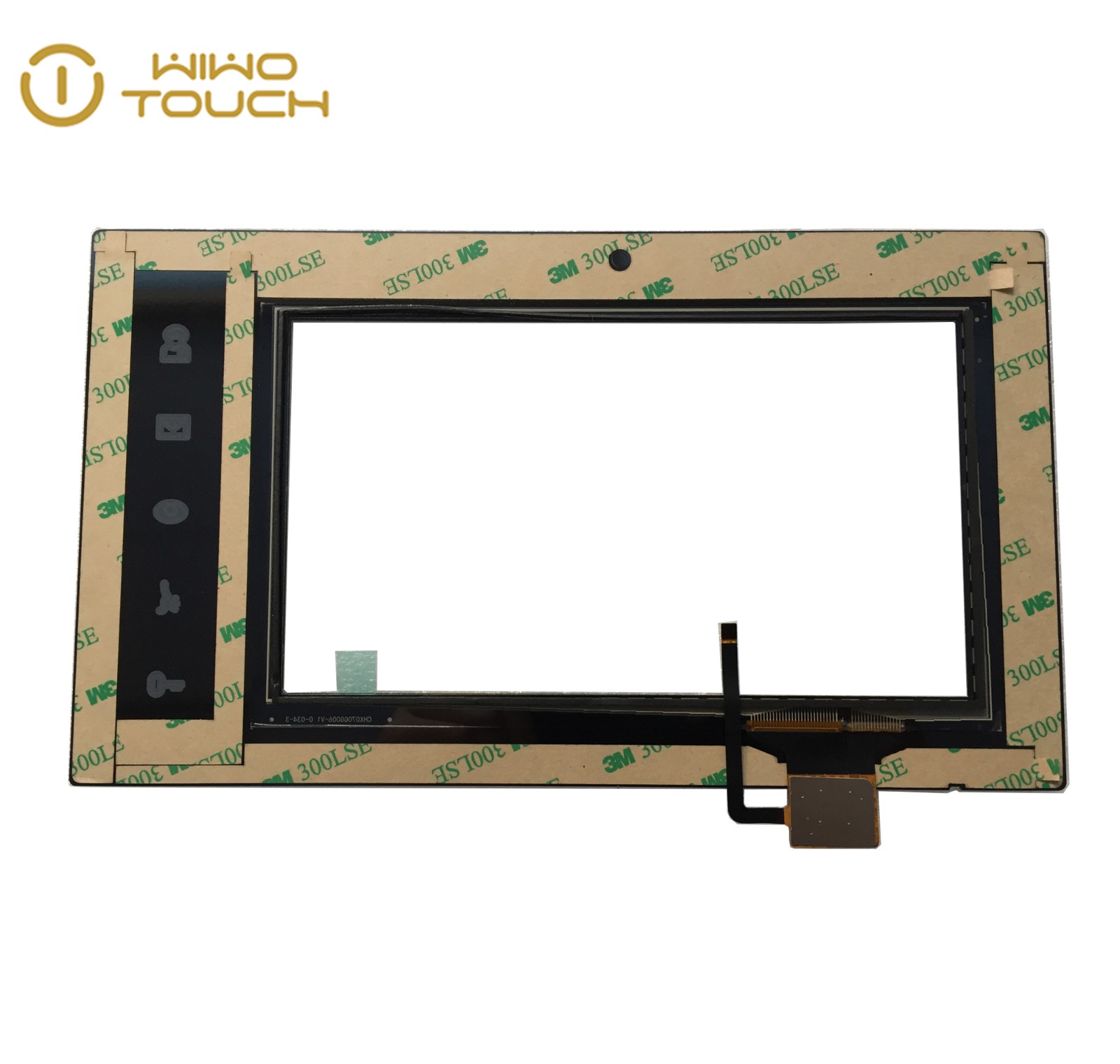

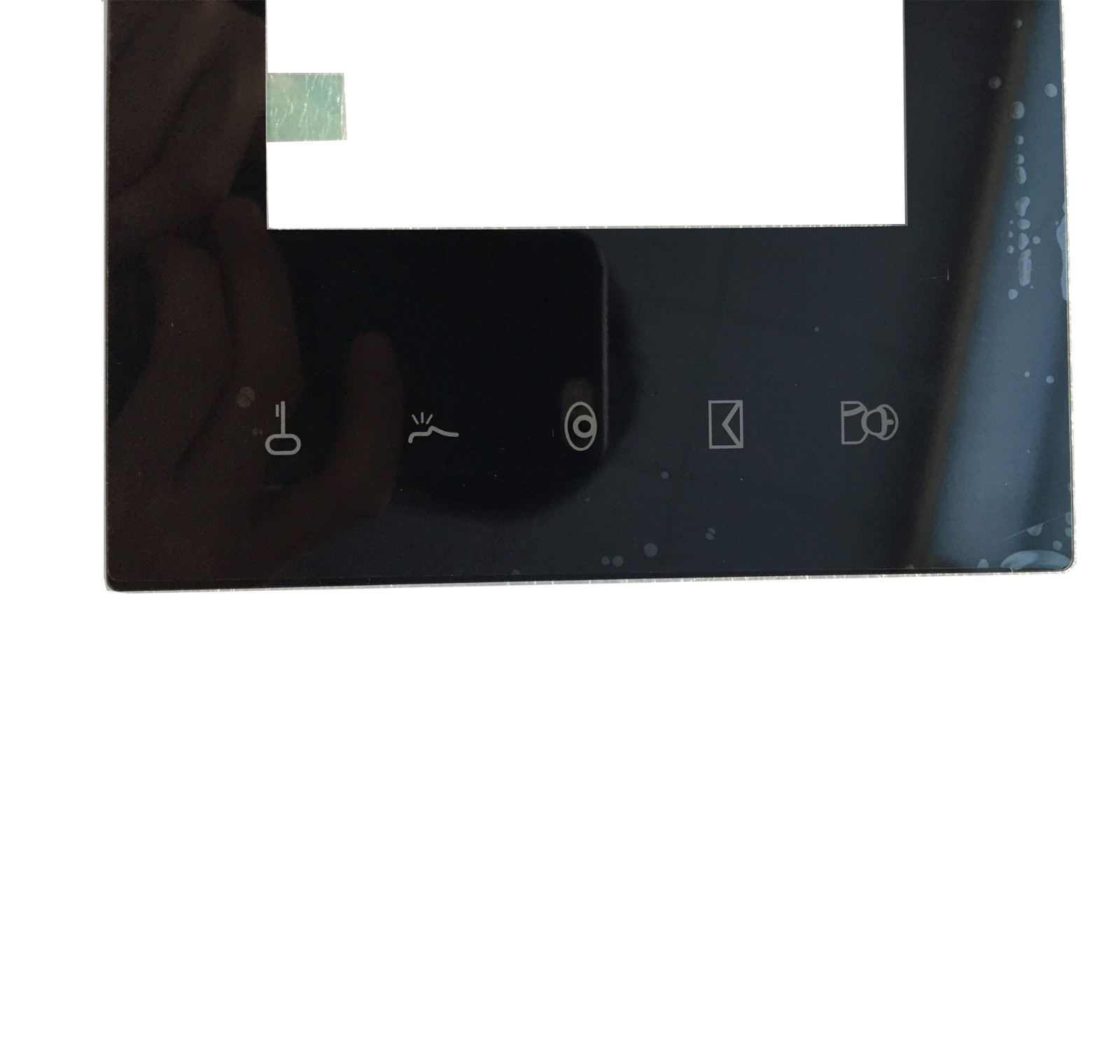

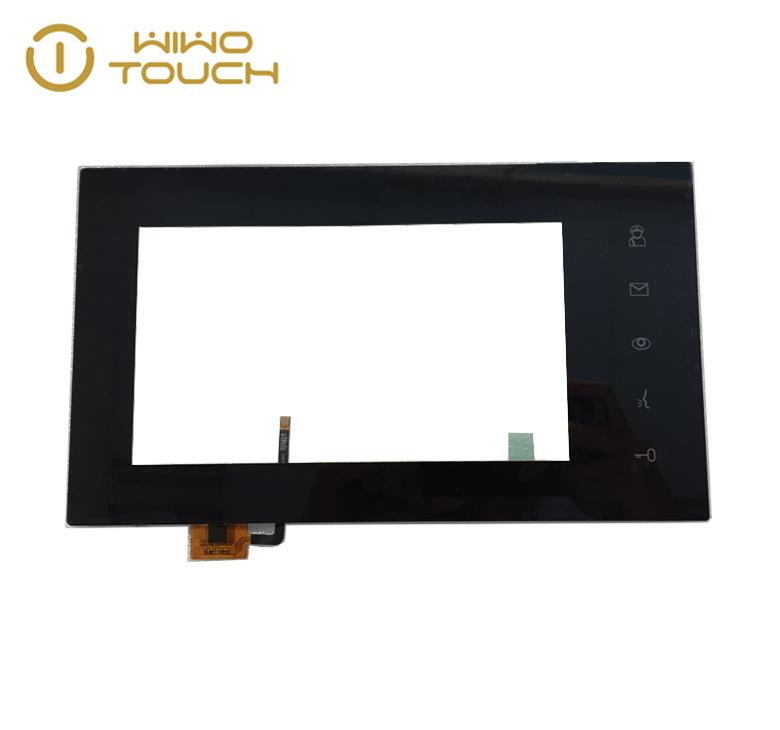

7 Inch Touch Screen Panel with IC
Since the two ITO layers don’t need to make physical contact, the top ITO substrate can be a piece of glass instead of film. Using glass for the top layer provides all the durability benefits mentioned above, and also allows the entire enclosure to be completely sealed, preventing contaminants from getting inside the device. The device enclosure can be built in such a way that the top piece of glass is also the faceplate of the device. No additional bezel is required, which is why this type of design is referred to as a zerobezel design.
Model Number | CHX070GG006 |
Structure | Glass+Glass |
Cover Glass Dimension | 223.70±0.1*129±0.1*1±0.1MM |
Sensor Size | 168.28±0.2*97.92±0.2*1.1±0.05M |
Cover Lens VA | 154.48±0.1*86.3±0.1MM |
ITO Glass | 1.1MM |
Cover Glass | 1.0MM |
Total Thickness | 2.3±0.15MM |
Surface Hardness | ≥7H |
Transparency | ≥85% |
IC | GT911 |
Interface of CTP | I2C |
Touch Points | 5-10 Points |
Operating Temperature | –20℃~70℃ ≤90%RH |
Storage Temperature | –30℃~80℃ ≤90%RH |

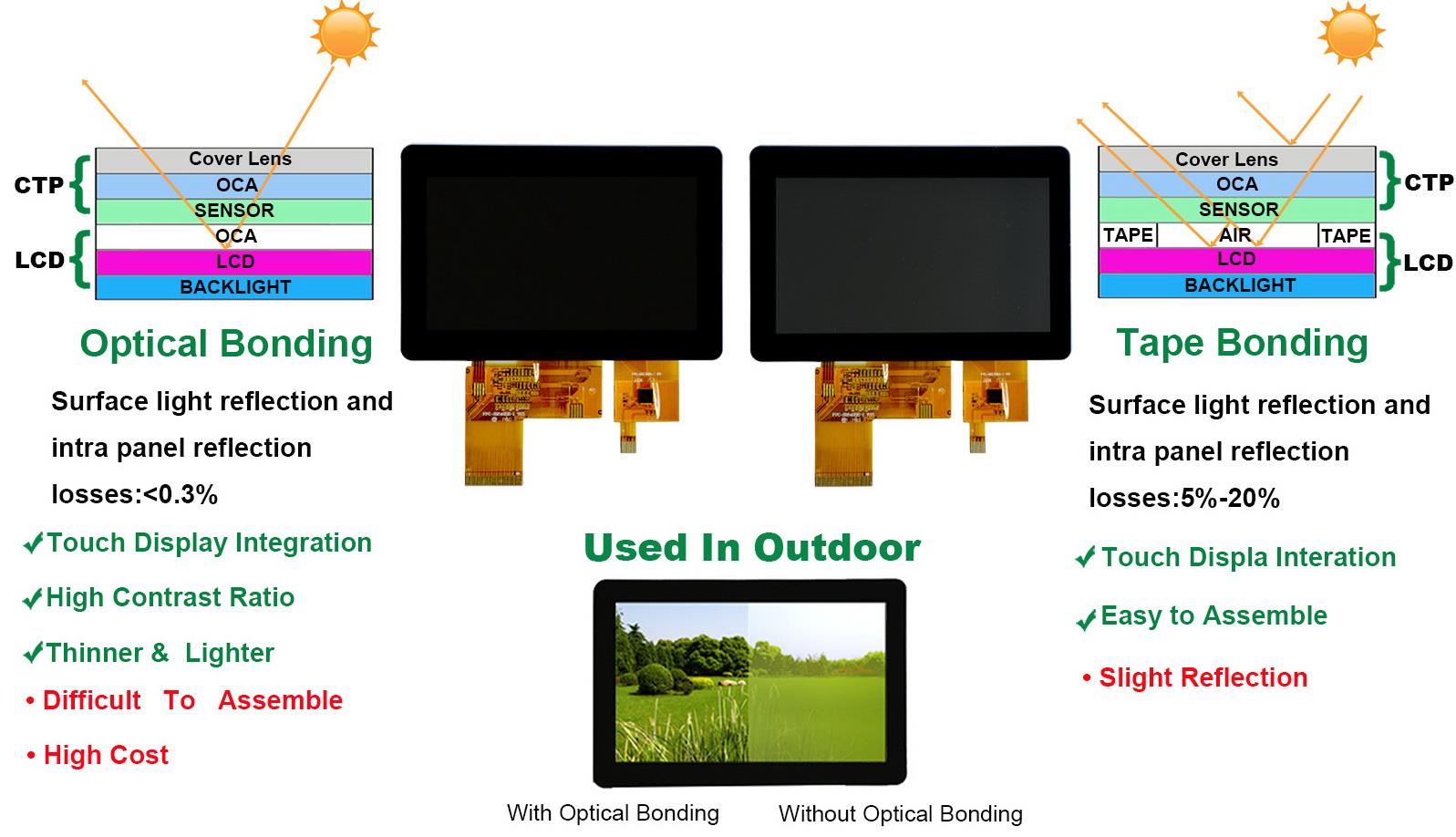

The benefits of Optical Bonding
Optical bonding also increases visibility by eliminating reflective images and increasing sunlight readability. The bonding adhesive creates an additional layer of durability, by increasing and strengthening the glass, which also extends the lifespan of the device. The optical performance can be further enhanced by using the same liquid bonding agent to bond the touch panel to the TFT, eliminating another source of reflections and refractions.
Why would clients like to work with WITOTOUCH?
How can you deliver the best value to your clients?
How will your operations be changed to accommodate?
Belows are some commonly reported problems about suppliers.
A. MOQ`s are higher than purchasing normally requires.
B: Poor customer service.The responses take too long time and the communication process is not efficient.
C:Adding a new supplier will cost thousands of dollars or even more. The worse thing is to choose a supplier who is not familiar with your business. This can increase your procurement and receiving cost quickly.
If the clients work with WITOTOUCH, he can have good purchasing experience.
A: Low MOQ as to 200 pcs for each touch screen type.
B: Our professionally R&D engineers team and sales team wait to serve you. Any question will be reponded in 24 hours.
C: We are good at capacitive touch panel for any structures with different types of IC chips.
