7-inch capacitive touch screen, supporting up to 10-point touch, with sensitive response, smooth operation, high light transmittance, wear resistance and durability, high stability, and excellent protection performance. It can achieve functions such as waterproofing (supporting wet hand touch), dustproofing, and explosion-proofing (thick glass cover plate), meeting the needs of outdoor or special scenarios.
Product specification
| Product Name | 7 Inch Capacitive touch panel |
| Cover Glass Dimension | 164.9±0.1*100±0.1 mm |
| Cover Lens VA | 155.08±0.2*86.92±0.2 mm |
| Cover Lens Thickness | 0.7 mm |
| ITO Glass Thickness | 0.55 mm |
| Total Thickness | 1.45±0.2 mm |
| SCA Thickness | 0.2 mm |
| FPC | 10PIN |
| Other Tolerance | ±0.2 mm |
| Material | Sodalime |
| Resolution | 800*480 |
| Operating Voltage | 2.8 V-3.3 V |
| Interface Voltage | 2.8 V-3.3 V |
| IC Model | FT5426 |
| Transmittance | ≥85% |
| Surface Hardness | 6H |
| Operating Environment | -20℃~+70℃,≤90%RH |
| Storage Environment | -30℃~+80℃,≤90%RH |
Main features
Multi-touch
Supports up to 10-point touch, with sensitive response and smooth operation, suitable for complex human-computer interaction interfaces.
High light transmittance
The light transmittance is generally above 85%, and when paired with a display screen, it presents a clear and sharp picture effect.
Wear-resistant and durable
It adopts a glass cover plate with a high surface hardness (usually 6H to 7H), which is scratch-resistant and impact-resistant.
High stability
It has excellent anti-interference performance and can adapt to complex situations such as electromagnetic interference in industrial environments.

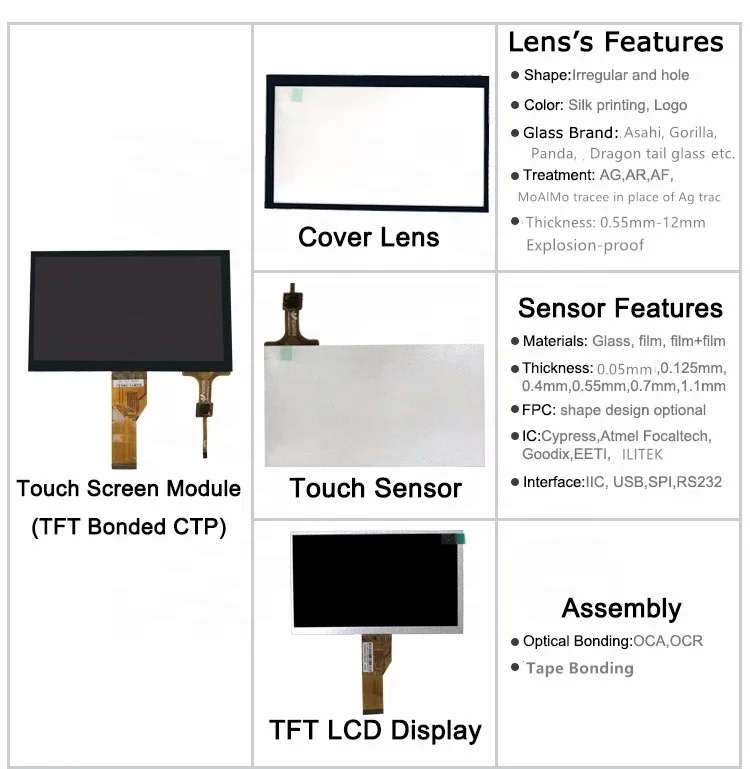

Support customization
The cover plate shape, printing pattern, LOGO, interface method (I2C/USB/RS232, etc.), FPC length, etc. can be customized according to the requirements.
Excellent protective performance
It can achieve functions such as waterproofing (supporting wet hand touch), dust-proofing, and explosion-proofing (thick glass cover plate), meeting the needs of outdoor or special scenarios.
Typical applications
Smart home
Intelligent central control screen, video intercom, home energy management system.
Industrial control
PLC human-machine interface (HMI), instruments and meters, and automatic control terminals.
Vehicle-mounted system
Central control navigation screen, rear-seat entertainment system, in-car instrument panel.
Medical equipment
Vital sign monitoring equipment, touch-controlled diagnosis and treatment systems, portable detectors.
Self-service terminal
Vending machines, inquiry machines, number-taking machines, ATMs, access control systems.
Consumer electronics
Our equiment
Re:1)Many years industrial experience and involved main markets all over the world.
2)Dedicated and professional sales team will offer you 24 hours online and immediate service.
3)Precise and advantage equipment.
4)High quality and sensitivity.
5)Many kinds of products with all size.
Q:How long is the warranty period?
Re:Usually 1 year without damaged by people actions.It depends on different products.
Q: Is customization available?
Re: Yes, we have strong R&D team for ele, mechanical, customization is welcomed.
Q: Can you provide OEM service?
Re: Yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: What's the after-sales service you can supply?
Re: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
