7 inch capacitive touch screen for makibes
| 7Inch Projected Capacitive Touch Screen | |
| Model Number | 070GG182 |
| Type | PCAP |
| Structure | Glass+Glass |
| Cover Glass Dimension | 195.6±0.1*130±0.1*1.1±0.1MM |
| Sensor Size | 163.5±0.2*99.85±0.2*0.7±0.1MM |
| Cover Lens VA | 154.44±0.2*86.23±0.2MM |
| ITO Glass Thickness | 0.7MM |
| Cover Glass Thickness | 1.1MM |
| Total Thickness | 2.0±0.2MM |
| Surface Hardness | ≥6H |
| Transparency | ≥85% |
| Operating Temperature | –20℃~70℃ ≤90%RH |
| Storage Temperature | –30℃~80℃ ≤90%RH |
| IC | FT |
| Interface of CTP | I2C |
| Touch Points | 5-10 points |
| Touch Accuracy | ±1MM |
| Linearity | ±1MM |
| OEM/ODM | we can make this product as per your design and put your logo on |
| MOQ | 100pcs |
| Sample Lead Time | 12 working days |
| Mass Production Lead Time | 2-4 weeks normally, it depends on your order quantity |
| Payment Terms | sample: by paypal or western union mass production order: T/T to our company bank account, 50% deposit, 50% balance before shipment |
| Warranty | 12 months |
| Package | plastic tray or anti static foam or paper card or vacuum bag or carton |
What are touchscreens?
The Purpose of Touchscreens:
Touchscreens are input devices such as touchpads positioned over liquid crystal panels that allow user input and function display. And because touchscreens make it possible for someone to intuitively and directly input and control displayed prompts such as “push” or “slide,” they are exceptionally user-friendly.
Where are touchscreens used?
Touchscreens have become familiar to many of us. Smartphone and portable phone manufacturers use touchscreens for their display screens, and banks use touchscreens in their ATMs. But beyond that, more and more we are interacting with touchscreens in tablet computers, portable game consoles, car navigation systems, multimedia stations, arcade games, information boards, restaurant order systems and countless more places and industries. In just the last few years, they have become common in our daily lives.
Capacitive Touch Technology
Capacitive touchscreens are coated with a transparent conductive film. When a fingertip comes into contact with a capacitative touchscreen, it can use the conductivity of the human body as a means for input. Electrostatic capacitive touchscreens are used in numerous smartphones such as Apple iPads and iPhones. Unlike resistive type touchscreens, electrostatic capacitive touchscreens are highly responsive yet cannot react to styluses or the touch of a fingernail. The disadvantages of capacitive touchscreens are they only react to a conductive material, and they may not work correctly if wet.

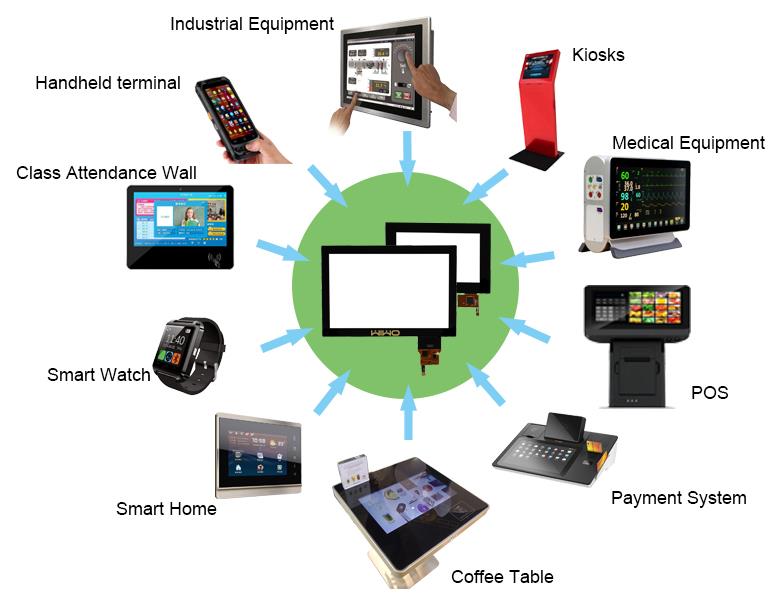

Application

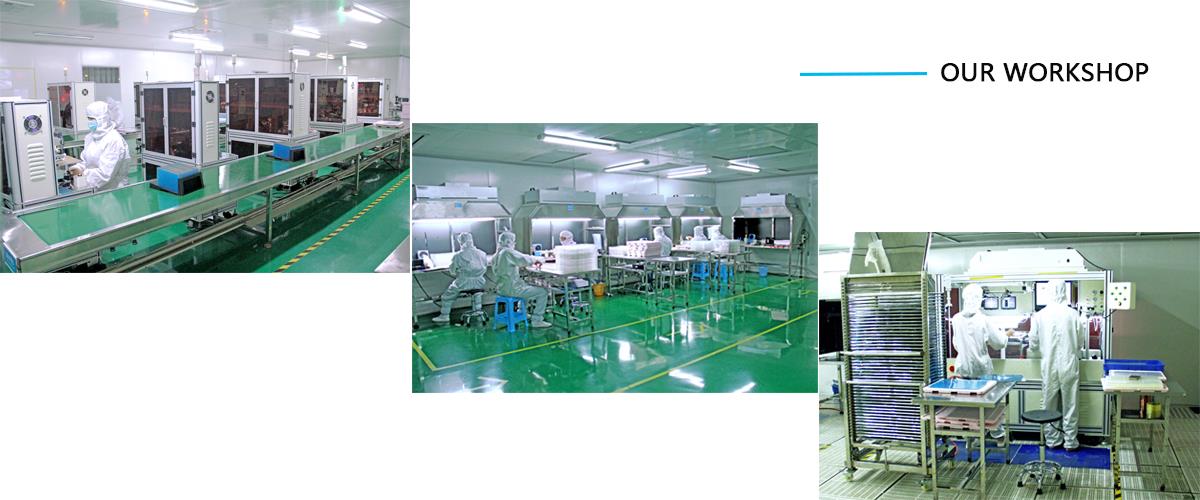

Our Workshop

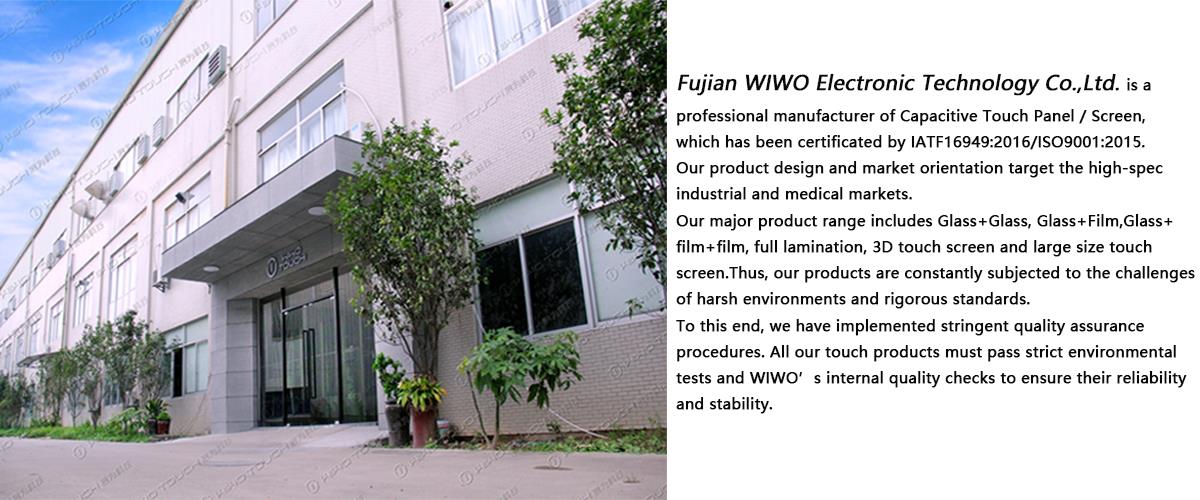

Our Company
Contact us
Name:Emily Li
Tel:0086-596-2607595
Email:Sales07@wiwotouch.com
