7 Inch 1024*RGB*600 Capacitive Multi Point Touch Screen Panel For Smart Home Control Panel

7 Inch 1024*RGB*600 Capacitive Multi Point Touch Screen Panel For Smart Home Control Panel

7 inch capacitive touch screen Features:
Multi-touch - 10-point touch for multi-finger operations, such as zooming, rotating, etc.
High transmittance - Transmittance is usually above 85%, providing a clear display effect.
High sensitivity - Fast touch response, support finger, glove touch (customizable).
Wear resistance and scratch resistance - high strength glass (such as AG glass, GG structure), surface hardness of 6H-7H.
Support customization - can customize different sizes, thickness, shape, cover color, LOGO printing, etc.
Industrial stability - Adapt to -20℃~70℃ working environment, support waterproof, dustproof, anti-interference (EMC).
Strong compatibility - Compatible with Windows, Android, Linux and other operating systems, suitable for different master control schemes.

Product Introduction

7 Inch 1024*RGB*600 Capacitive Multi Point Touch Screen Panel For Smart Home Control Panel




13

800  1

800  2

Specification
Model Number
CYH070GG122-V1.0
Product Name
7 inch capacition touch screen
Material
GLASS
Cover Lens Thickenss
0.7mm
ITO Glass Thickness
0.55mm
Other Tolerance
±0.2mm
FPC
8 pin
Interface Type
IIC
Transmittance
≥86%
surface hardnsee
6H
Operating Environment
-20℃~+70℃,≤90%RH
Storange Environment
-30℃~+80℃, ≤90%RH
Interface
IIC
Resolution
1024xRGBx600
Customized Function
Logo AG AR AF and so on
Touch points
Multi Point Touch

Model Number
CYH070GG122-V1.0
Application
Industrial
Interface
IIC
Type
Capacitive
Length
205mm
Diagonal Screen Size
7 inch
Width
158mm
Features
≤ IK 10
Drive IC
CYTMA568
Cover Glass Dimension
205±0.2*158±0.2mm
Cover Lens VA
154.20±0.2*90.6±0.2mm
Structure
Cover Glass+ITO Glass+FPC
Interface
IIC
Resolution
1024xRGBx600
Customized Function
Logo AG AR AF and so on
Warranty
1 Year
Certificate
RoHS Iso14001 ISO9001 Reach
Touch panel
Support Customization
Touch points
Multi Point Touch
Custom service of product
We offer customized solutions which are according to customer requirements.Our touch screens mag be produced in a selected shape ,color , size of cover glass , touch IC ,thickness , packing,corner with logo and other additional element as per specification provided by the client.
* SIZE
* SHAPE
* COLOR
* TOUCH IC
* THICKNESS
* LOGO
* PACKING

Surface
Treatment customization:Anti-glare, Anti-fingerprint , Anti-reflective , Anti-UV , Antibacterial ,Waterproof, Vandal-proof , 3D curve
surface

IC: Atmel , ILITEK ,EETI , CYPRESS , etc

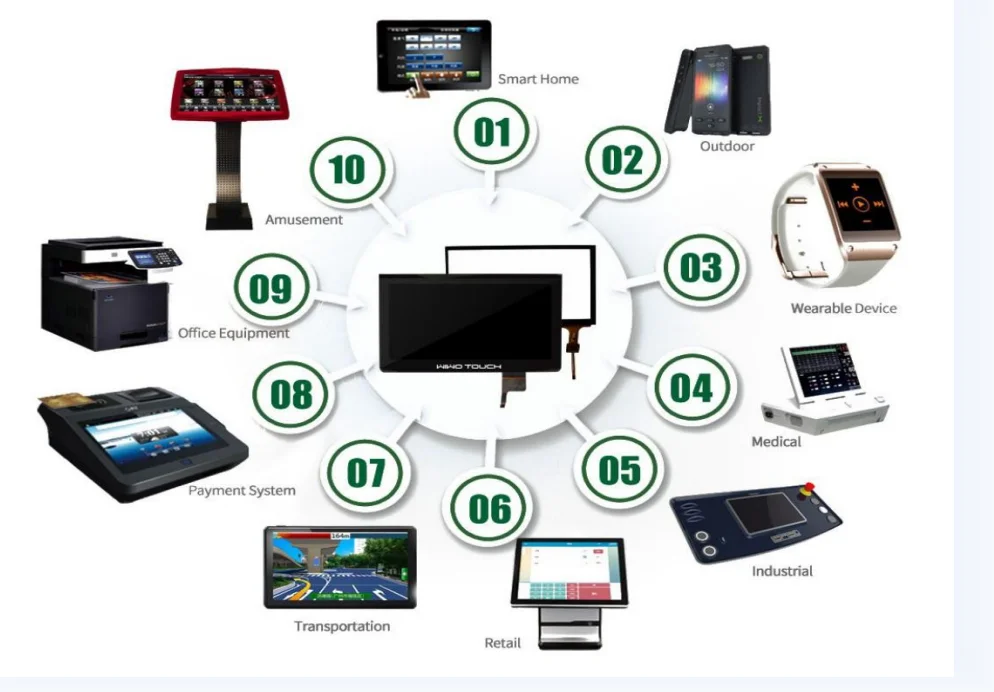

Application

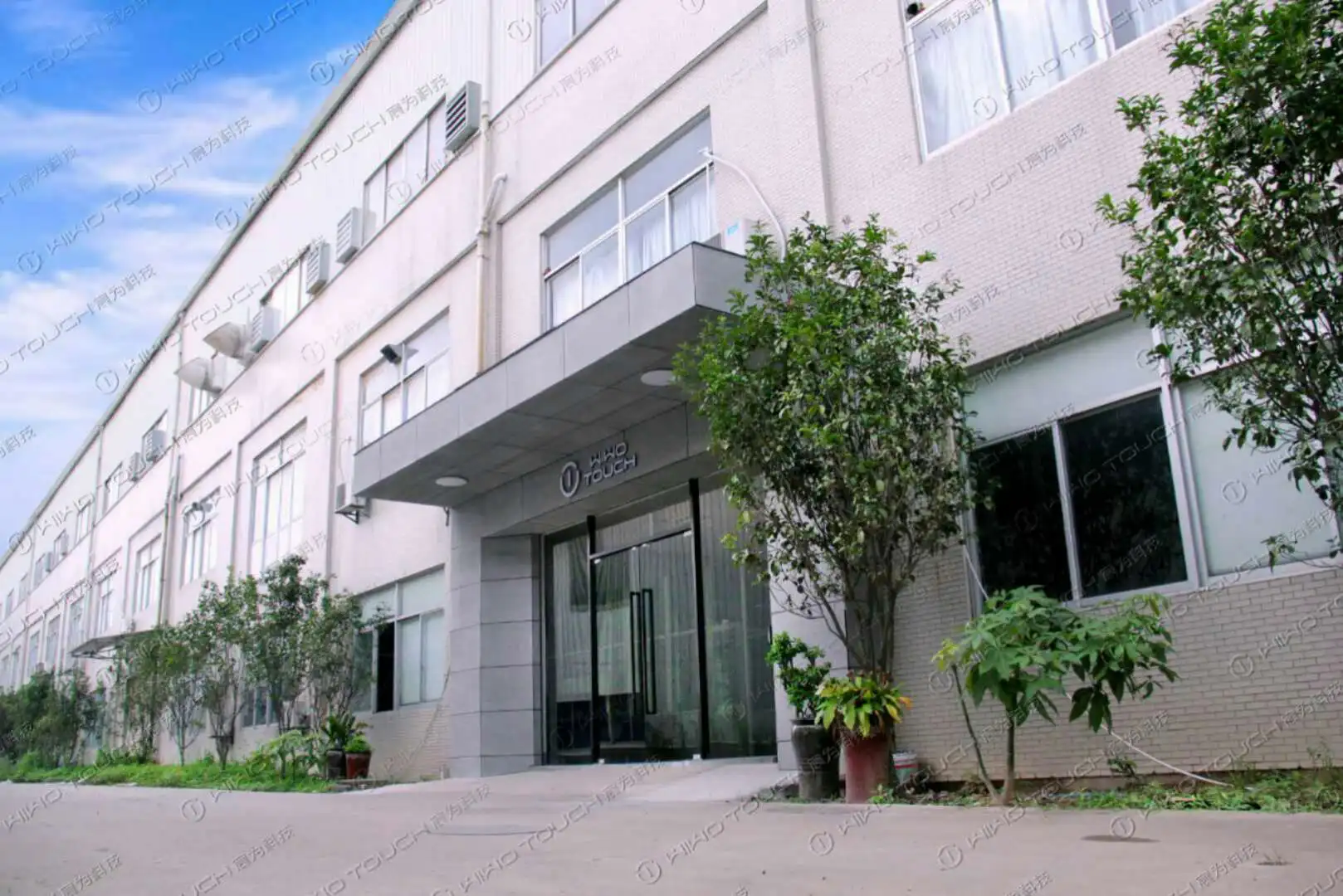

Company Profile

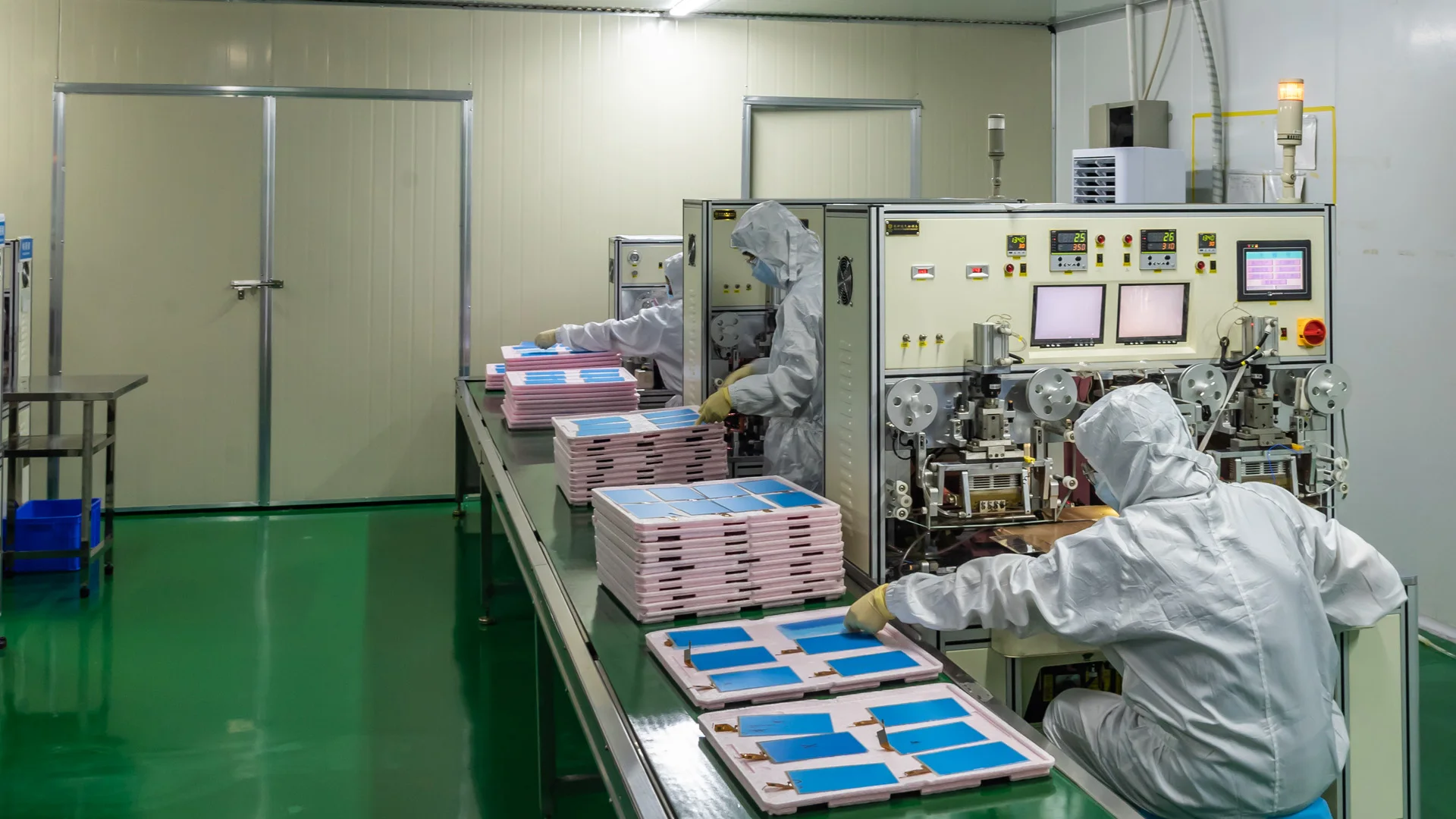

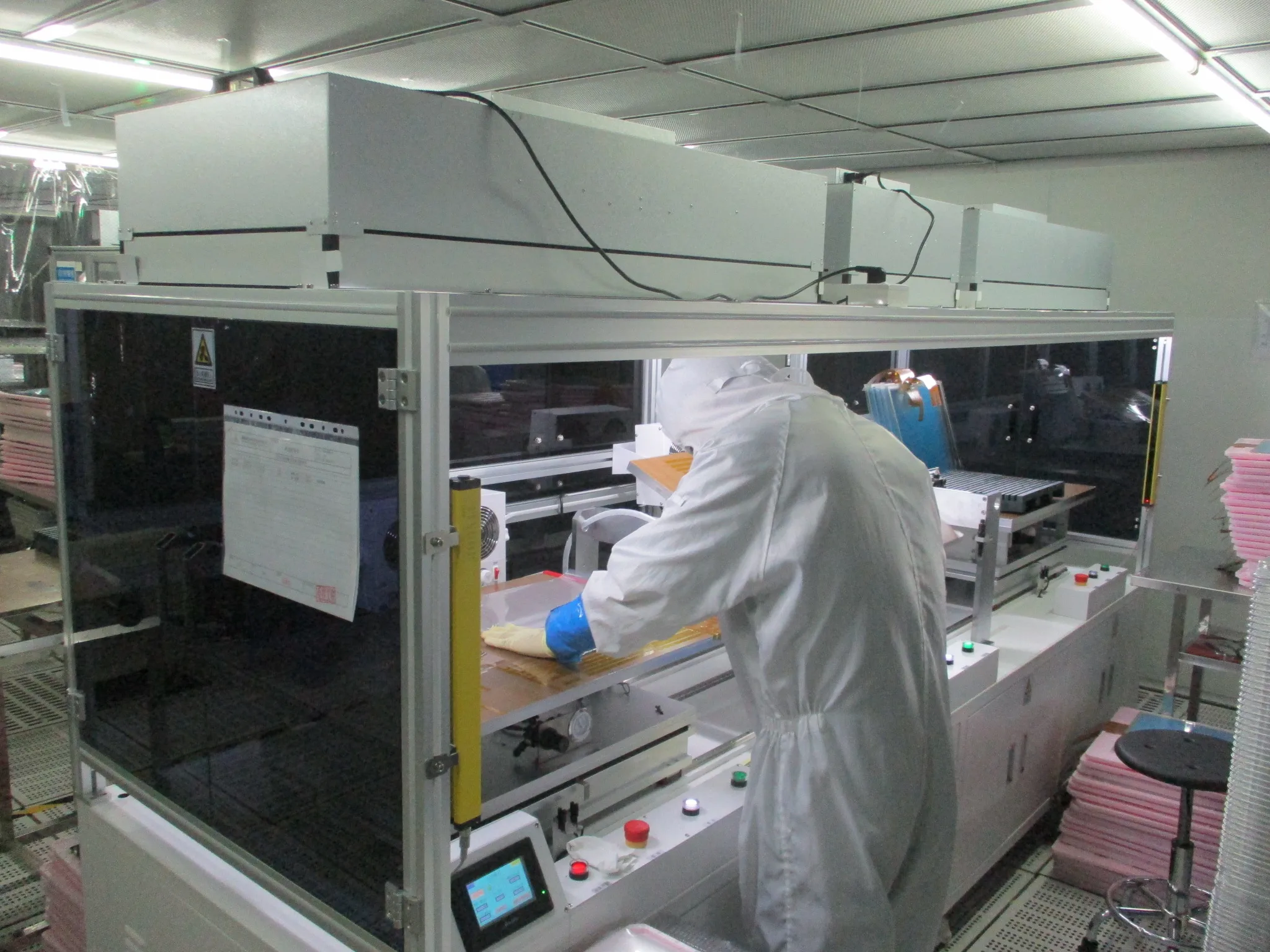

Our Company is a professional manufacturer, researcher and designer of Industrial Projected Capacitive Touch Panel / Screen, which has been certificated by ISO9001:2009/ISO14001:2004. Our major product range includes Glass+Glass, Glass+Film, Glass+film+film, full lamination, 3D touch screen and large size touch screen. We have hundreds of dust-free work shop1000 square meters and thousands of dust-free plant 2200 square meters. Meanwhile we use the advanced equipments from Japan and Taiwan to secure the Best Quality for our customers.





For more information about touch screen, please contact us:


Email: sales09@wiwotouch.com

Name: Grace Chen

TEL: +86-18259612702

Our team will reply you as soon as possible

call us with any questions

Have a nice day

Thank you for your time
