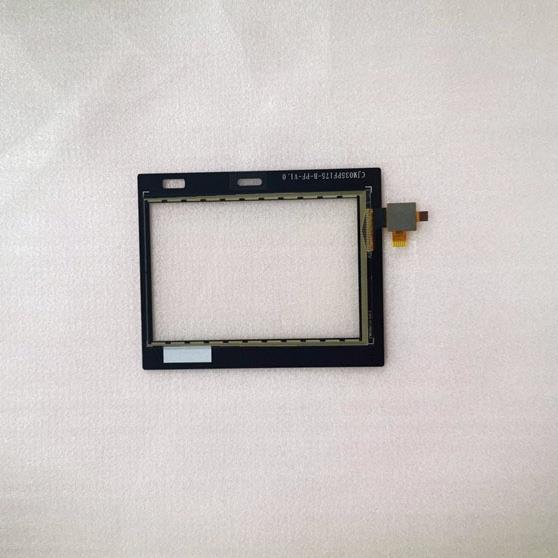

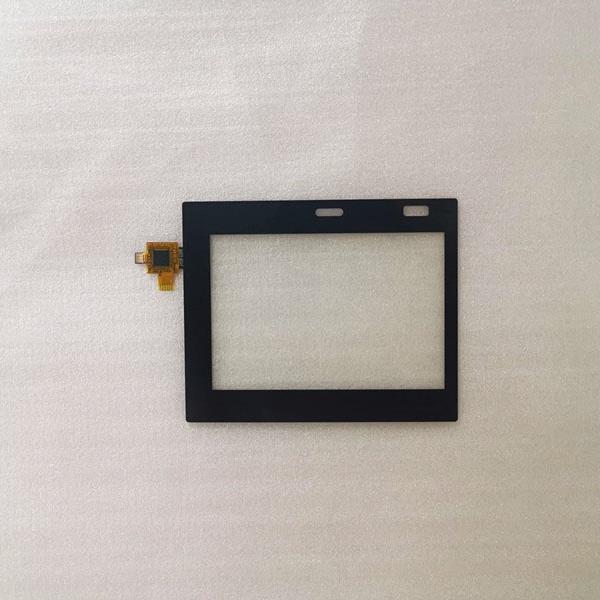

mini 3.5 inch projector touch panel
| 3.5Inch Projected Capacitive Touch Screen | |
| Model Number | 035PF175 |
| Type | PCAP |
| Structure | Glass+Film |
| Cover Glass Dimension | 70.7±0.2*87±0.2*1.0±0.05MM |
| Sensor Size | 55.44±0.2*81.24±0.2*0.25±0.05MM |
| Cover Lens VA | 49.76±0.15*74.24±0.15MM |
| ITO Glass Thickness | 0.25MM |
| Cover Glass Thickness | 1.0MM |
| Total Thickness | 1.45±0.1MM |
| Surface Hardness | ≥6H |
| Transparency | ≥86% |
| Operating Temperature | –20℃~60℃ ≤90%RH |
| Storage Temperature | –30℃~70℃ ≤90%RH |
| IC | FT |
| Interface of CTP | I2C |
| Touch Points | 5-10 points |
| Touch Accuracy | ±1MM |
| Linearity | ±1MM |
| OEM/ODM | we can make this product as per your design and put your logo on |
| MOQ | 100pcs |
| Sample Lead Time | 12 working days |
| Mass Production Lead Time | 2-4 weeks normally, it depends on your order quantity |
| Payment Terms | sample: by paypal or western union mass production order: T/T to our company bank account, 50% deposit, 50% balance before shipment |
| Warranty | 12 months |
| Package | plastic tray or anti static foam or paper card or vacuum bag or carton |
What is Multi-Touch technology?
Multi-Touch technology works with TrackPads (or TouchPads) and touch-screen interfaces, like those found on laptops, smartphones and tablets. It allows users to interact with their devices in a multitude of ways, by expanding the number of interface options. Rather than simply swipe and tap, Multi-Touch allows for zooming, scrolling, selecting, and more. It is designed to provide touch-screen interfaces with the same sort of flexibility and usability that a traditional mouse and keyboard provide, while also providing for a more intuitive and seamless user experience.
Examples of Multi-Touch
Examples of Multi-Touch technology in practice include smartphones, tablets, touch tables and walls (like those found in museum exhibits and commercial spaces), and laptops with TrackPads. All of these devices allow for individuals to interact with them in different ways, thanks to Multi-Touch technology. For example, you can zoom in or out by pinching or expanding two fingers across a touch screen or TrackPad. This is the nature of Multi-Touch technology – different hand gestures result in different functions.
