Customize Size 0.96 3.5 7 8 10.1 13.3 15.6 PCAP Capacitive Multi Touch Panel Waterproof Touch Screen

13.3 inch capacitive touch screen:
G+G structure, strong scratch resistance, high light transmission;
Support 10-point touch, smooth operation, high sensitivity;
Support a variety of interfaces: USB/I2C/RS232, easy to integrate;
Support Optical bonding/Air bonding process;
Customizable dimensions, cover color, LOGO printing, glass thickness, etc.,
Suitable for high-interference environments, such as medical, power, industrial control, etc.

Product Introduction

Customize Size 0.96 3.5 7 8 10.1 13.3 15.6 PCAP Capacitive Multi Touch Panel Waterproof Touch Screen

Technical Parameter of 13.3 inch touch screen
Model Number	CJX133GG53
Type	PCAP
Structure	Glass+Glass
Cover Glass Dimension	324.1±0.3207.8±0.31.1±0.1MM
Sensor Size	306.66±0.2179.94±0.21.1±0.05MM
Cover Lens VA	293.42±0.3*164.96±0.3MM
ITO Glass	1.1MM
Cover Glass	1.1MM
Total Thickness	2.4±0.25MM
Surface Hardness	≥6H
Transparency	≥90%
IC	ILI2301S
Interface of CTP	I2C,USB
Touch Points	5-10 points
Touch Accuracy	±1.5MM
Linearity	±1.5MM
Operating Temperature	–20℃~60℃ 20-85% RH
Storage Temperature	–30℃~70℃ 10-95% RH
MOQ	10pcs
Sample Lead Time	12 working days
Mass Production Lead Time	2-4 weeks normally, it depends on your order quantity
OEM/ODM	we can make this product as per your design and put your logo on
Payment Terms	sample: by paypal or western union mass production order: T/T to our company bank account, 50% deposit, 50% balance before shipment
Warranty	12 months

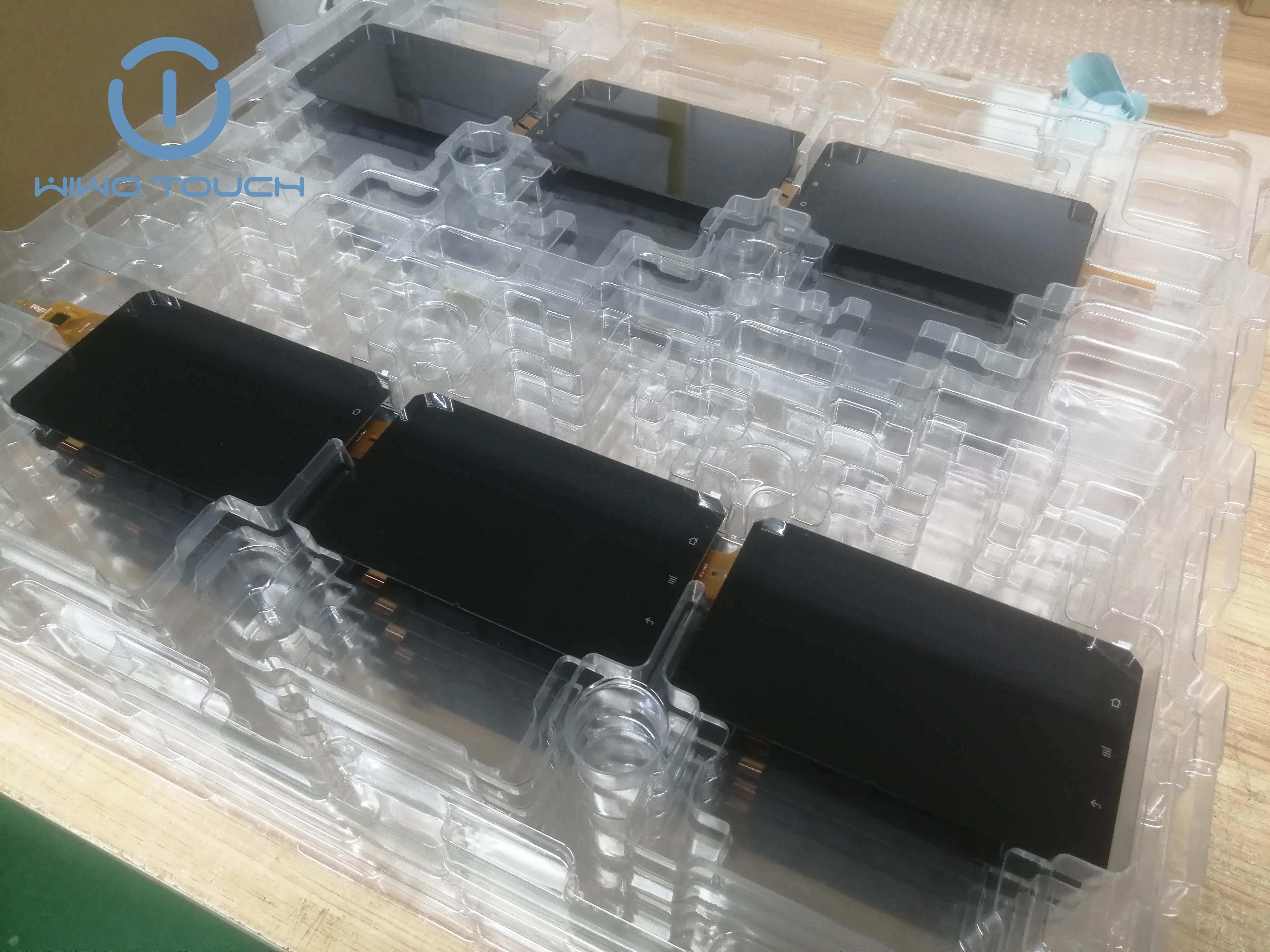

Package	plastic tray or anti static foam or paper card or vacuum bag or carton

13.3 inch capacitive touch panel

13.3 inch capacitive touch screen product features

Support 10-point touch, smooth operation, high sensitivity; Support finger, glove, conductive pen and other touch modes (customizable)

HD display matching: usually with LCD resolution of 1920×1080 (Full HD)

Supports multiple interfaces: USB/I2C/RS232 for easy integration

Use G+G structure, strong scratch resistance, high light transmittance

The surface hardness is up to 6H~7H, wear-resistant and durable

Support working temperature range: -20℃ ~ 70℃ (can be customized wider)

Flexible customization of appearance and structure

Support full fit/frame paste process

Customizable dimensions, cover color, LOGO printing, glass thickness, etc

EMC Strong anti-interference capability (optional)

Suitable for high interference environment, such as medical, electric power, industrial control, etc

Our Advantage

WIWO can do
1 Capacitive Touch panel/ resistive touch panel /Sensor+ FPC+Cover glass (GG/GF/GFF) 3D touch panel
2.We have some standard products (0.9 inch to 42 inch PCAP )in stock and no tooling request
3. Special Treatment :AG/AG/AF ,Water-proof,With glove touch
4. Touch controller: ilitek, EETI ,Goodix, Focaltech and so on.5. We can provide the LCD solution, combine the LCD and touch
panel.
6. The way of combine: Optical Bonding and Tape Bonding

Company Introduction

Fujian WIWO Electronic Technology Co., Ltd. is a professional manufacturer, researcher and designer of Industrial Projected Capacitive Touch Panel / Screen, which has been certificated by IATF16949:2016, ISO9001:2015, REACH, RoHs and ISO14001. Our major product range includes Glass + Glass, Glass + Film, Glass + film + film, full lamination, 3D touch screen and large size touch screen. We have hundreds of dust-free work shop1000 square meters and thousands of dust-free plant 2200 square meters. Meanwhile we use the advanced equipments from Japan and Taiwan to secure the Best Quality for our clients.
