Name: Sunlight Readable MCU SPI tft lcd module touch panel 5 Inch Customize glass overlay kit touch screen Capacitance Touch Sensor
Brand: WIWOTOUCH
SKU: 211629818

Sunlight Readable MCU SPI tft lcd module touch panel 5 Inch Customize glass overlay kit touch screen Capacitance Touch Sensor

5 inch capacitive touch screen, with waterproof, dustproof, anti-interference, highlighting and other features, can be selected according to the requirements of the appropriate specifications and parameters.
Common application areas:
1. Industrial control - automatic testing equipment: easy for operators to monitor and control in real time
2. Smart home - smart kitchen appliances (such as coffee machine, oven, etc.)
3. Medical equipment-Medical testing terminal (ultrasonic instrument, diagnostic equipment)
4. Consumer electronics - electronic dictionary, learning machine
5. Outdoor and special environments - outdoor equipment (charging pile, unattended terminal)
6. Military and aerospace equipment

Sunlight Readable MCU SPI tft lcd module touch panel 5 Inch Customize glass overlay kit touch screen Capacitance Touch Sensor

This 5.0 inch capacitive touch screen panel with cover glass is engineered for smart home systems, medical equipment, and industrial handheld devices. It adopts a G+G (Glass+Glass) structure for superior durability and clarity, while supporting full customization of the cover lens including shape, logo, coating, and thickness.

Custom Cover Glass Options

We offer flexible capacitive touch screen cover glass customization services, allowing customers to match their industrial or consumer product design.

Shape: Rounded corners, sensor holes, side notches

Logo printing via silk-screen or laser etching

Surface Coatings: Anti-glare (AG), Anti-reflective (AR), Anti-fingerprint (AF)

Glass Thickness: 0.7mm to 6mm available

Color printing and decorative frames

Product Description

Product Name	5 Inch Capacitive touch panel
Material	Sodalime
COVER LENS Thickness	0.7 mm
ITO GLASS Thickness	0.55mm
Total Thickness	1.45±0.1mm
FPC	10PIN
Resolution	272*480
IC Model	Focal Tech FT5336
Transmittance	≥85%
Surface Hardness	6H
Operating Environment	-10℃~+60℃,≤45～90%RH
Storage Environment	-20℃~+70℃,≤45～90%RH

Model Number

C4D050GG74

Application

Industrial

Interface

IIC

Type

Capacitive

Length

140.7mm

Diagonal Screen Size

5inch

Width

93.83mm

Features

Black

Product Name

Capacitive Touch Panel

Cover Glass Dimension

140.7±0.1*93.83±0.1 mm

Cover Lens VA

109.04±0.15*65.75±0.15 mm

Touch type

Multi touch

Screen printing

Black printing

Structure

Glass+Glass

Surface Treatment

AG/AF/AR

Application

Industrial/Intelligent household

Warranty

12 months

Shipment method

DHL FEDEX UPS EMS TNT

WIWOTOUCH P-CAP & TFT Manufacturer

• PCAP size from 0.6"-43"
• Multi Touch (The touch screen can be customized according to your needs.)
• Optical Bonding service/Air bonding
• LCD Interface: HDMI/RGB/MIPI/LVDS
• PCAP Interface: IIC/USB interface
• CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint), Water-proof, Glove Touch
• Support touch with 0.55 mm-12 mm cover glass.
• Support operating temperature: -30℃-90℃.

Custom service of product

1. Custom service: shape, color, size of cover glass, thicknesses, logo icon, and other additional element according to the specifications provided by the customer.

2. Special Treatment :AG/AG/AF ,Water-proof,With glove touch.
3. Touch screen structure:Glass+Glass, Glass+Film, Glass+Film+Film.
4. Advanced machine:the advanced equipments from Japan and Taiwan.
5. Touch controller: ilitek, EETI ,Goodix, Focaltech and so on.
6. The Touch panel ranges from small to large ,almost any size you want such as 0.9" 1.4" 3.5" 5" 7" 8" 9" 10.1" 17" 19 " 23.6"32"42" and so on.

Product Usage

Certification and Exhibition

Company Introduction

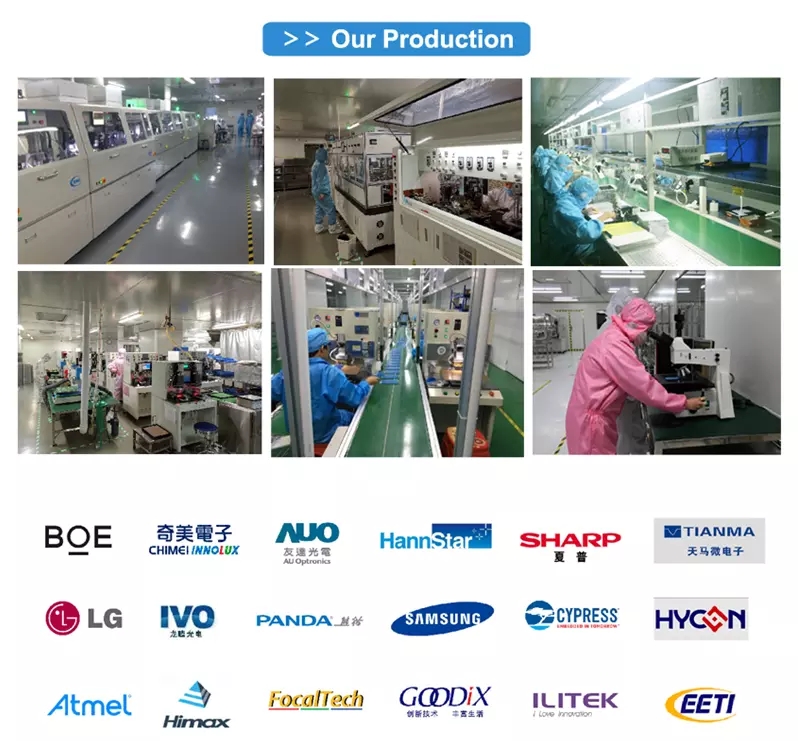

Fujian WIWO Electronic Technology Co., Ltd. is a modern science and technology company who professionally researchers, manufactures and designers of Projected Capacitive Touch Panel / Screen. Our main product structure includes Glass + Glass, Glass+ Film, Glass + film + film, fully lamination, car capacitive screen, 3D touch screen and large size touch screen. At present, our company has been certificated by IATF16949:2016, ISO9001:2015, REACH, RoHs and ISO14001. And, we have international advanced equipments, 800 square meters of 100 grade dust-free workshop and 2000 square metres thousands grade dust-free workshop,in order to provide customers with good quality products.

For more information about touch screen, please contact us：

Email: sales09@wiwotouch.com

Name: Grace Chen

TEL: +86-18259612702

Our team will reply you as soon as possible

call us with any questions

Have a nice day

Thank you for your time
